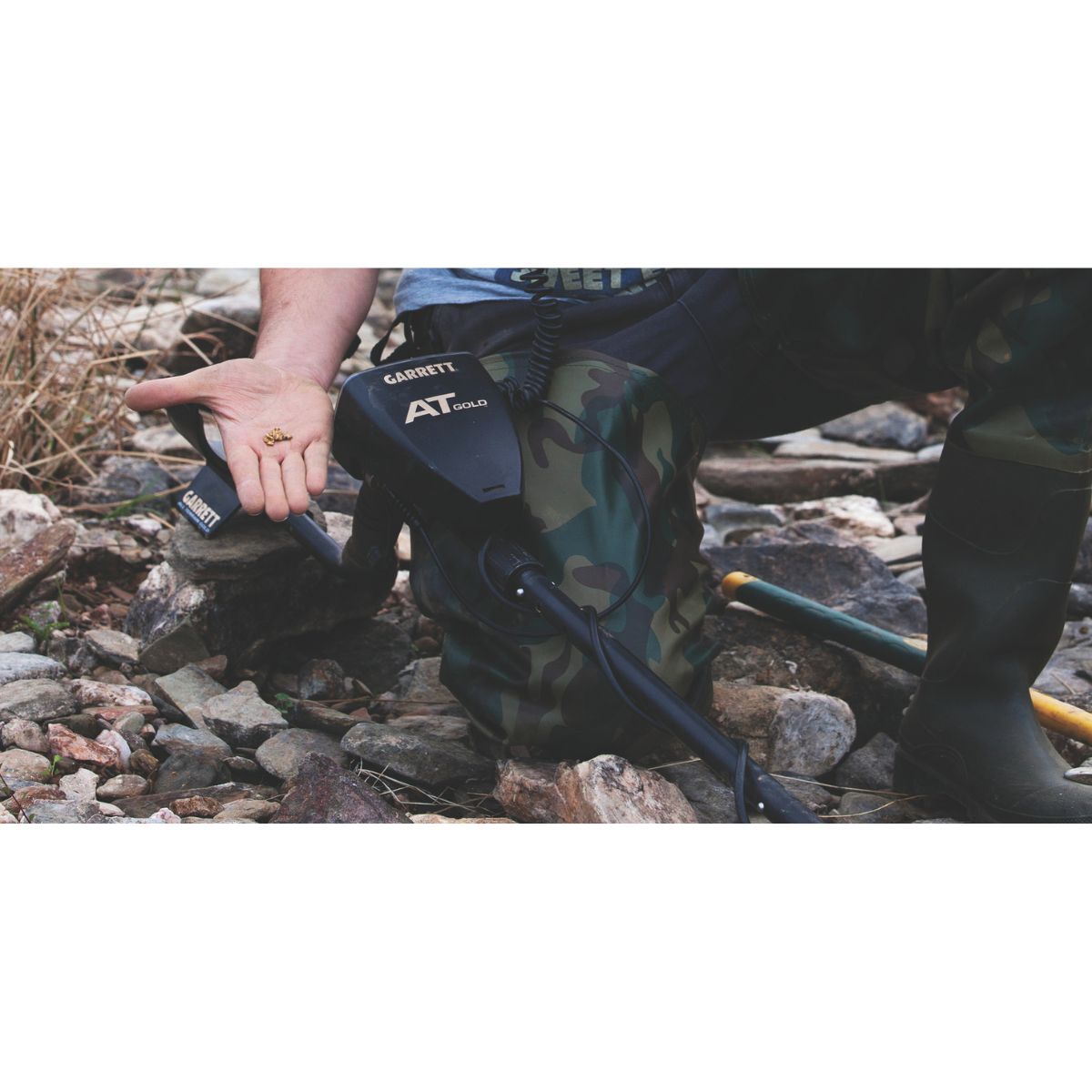

The AT Gold is Highly Recommended for Prospecting, Coin, Jewelry, Cache Hunting, Relic Hunting, Organized Hunts and Shallow Fresh Water Hunting.

The AT Gold includes 18kHz frequency for enhanced detection of small gold nuggets, jewelry, coins and relics. It features 'Deep-Seeking True All Metal Mode Performance' for all terrain prospecting

AT Gold Metal Detector Specification Sheet

Features:

All-Metal Mode
True All-Metal mode offers deepest detection depth and sensitivity on the smallest nuggets.

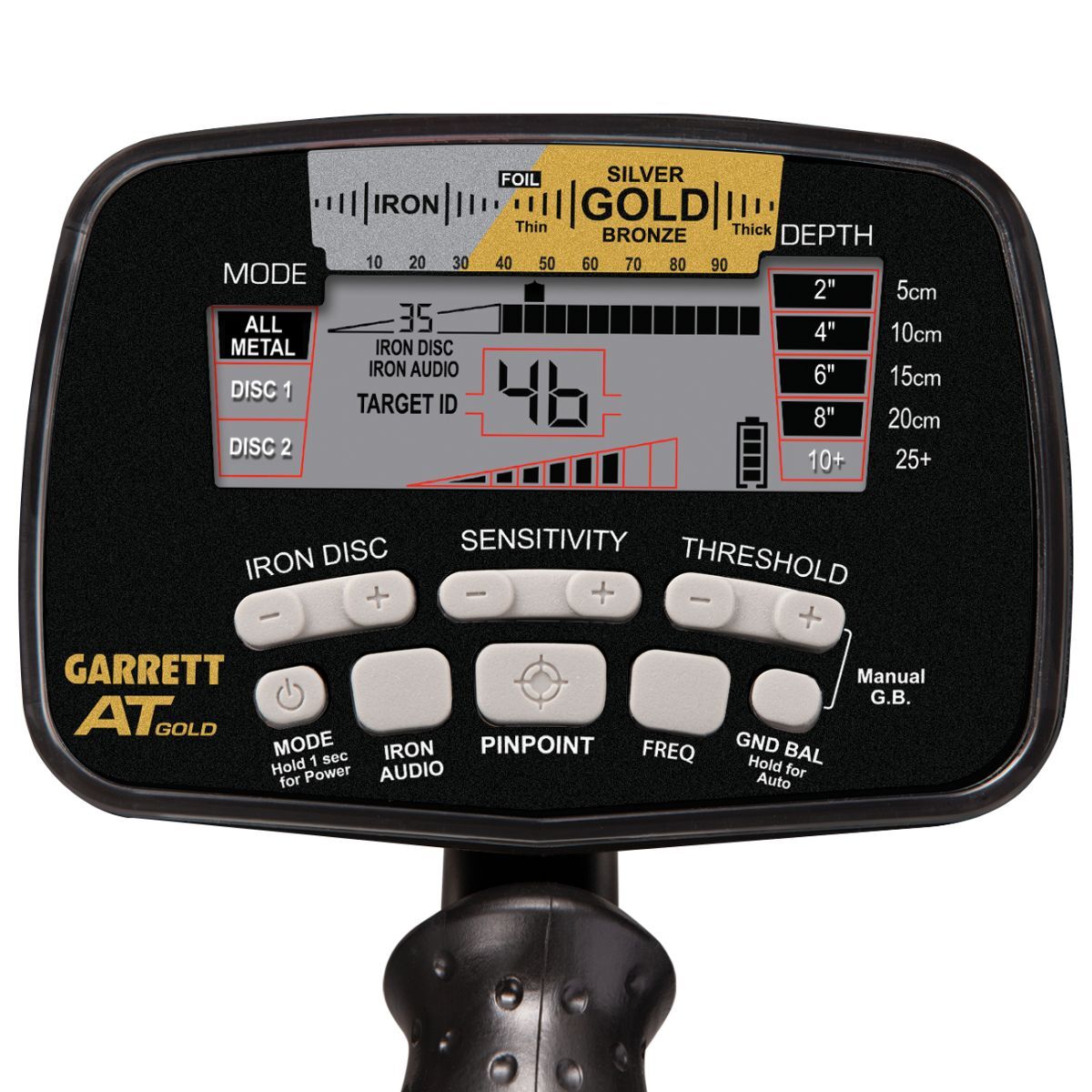

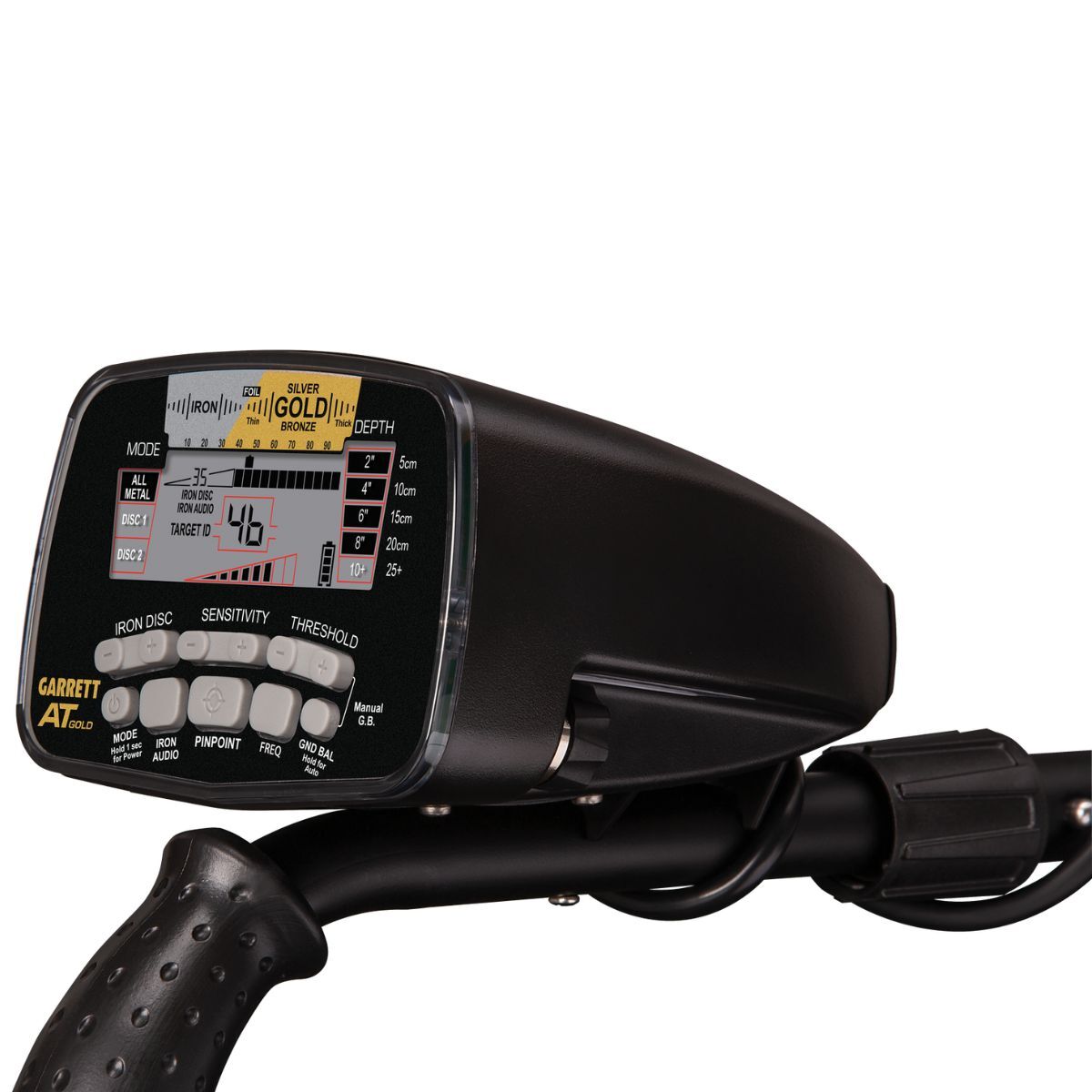

Graphic Target Analyzing
Simultaneously shows the target's conductivity and the detector's discrimination pattern.

All-Terrain
Designed for use in wet, humid and dusty environments. Weatherproof housing can be immersed in water to 10-foot (3m) depth.

Digital Target ID
Numeral scale from 0 to 99; indicates a target metal's conductivity for increased ability to distinguish targets from each other.

High-Resolution Iron Discrimination
Provides 40 points of iron resolution—controlled with touchpads and viewed as a digital number on the LCD—for the most precise ability to separate a good target from iron trash.

Adjustable Threshold
Allows the user to manually adjust the audio threshold (constant background sound) to better hear targets.

Pro Mode Audio
Proportional audio response and Tone Roll Audio features provide more target information.

Iron Audio™
Allows user to hear discriminated iron and to audibly identify problematic flat iron objects like bottle caps and washers.

All-Metal Iron Audio™
A Garrett exclusive feature that allows user to audibly identify iron objects even while operating in a True All Metal Mode.

Ground Balance (Manual)
Allows the user to manually adjust the detector's ground balance to reduce the detrimental effects of ground mineralization.

Ground Balance Window™
A Garrett exclusive feature that allows user to “spread” the ground balance setting to reduce the response to subtle ground variations.

Fast Track™ Ground Balance
Automatic feature that allows user to quickly ground balance the detector in mineralized soil conditions.

Electronic Pinpointing
This Non-Motion All-Metal Mode is used to precisely locate a detected target's location in the ground.

One-Touch Treasure Hunting
With the touch of a button, your metal detector is: powered on; automatically reset to factory (or your) settings; and ready to search!

Indicators and Modes:
Depth Indicator: Continually shows depth of coin-size objects.

Battery Condition Indicator: Shows battery life continually

Search Modes: 3 plus electronic pinpointing

• True All Metal
• Discrim 1
• Discrim 2
• Electronic Pinpointing

AT TECH SPECS COMPARISON
Z-Lynk™ Wireless Technology	Yes (With MS-3 Z-Lynk headphones included)	No	No
Backlight	✔	No	No
Iron Discrimination Segments	44	40	44
True All-Metal Mode	✔	No	✔
Volume Adjustment	✔	No	No
Notch Discrimination	Adjustable	Adjustable	Preset (fixed)
Search Modes	4, all Pro Audio	6 (3 Standard, 3 Pro)	3, all Pro Audio
Proportional Audio	✔	✔	✔
Standard Binary Audio	No	✔	No
Fast Recovery Speed	✔	✔	✔
Sensitivity/ Depth Adjustments	8	8	8
Iron Audio™ (Disc. Modes)	✔	✔	✔
Iron Audio™ (All Metal Mode)	✔	No	✔
Threshold Adjustment	✔	No	✔
Digital Target ID	✔	✔	✔
Ground Balance, Auto/Manual	✔	✔	✔
Ground Balance Window™	✔ (Automatic)	No	✔
Pinpoint	✔	✔	✔
Waterproof	✔ (to 10 feet / 3m)	✔ (to 10 feet / 3m)	✔ (to 10 feet / 3m)
Freshwater use	✔	✔	✔
Saltwater use	✔	✔	not recommended
Frequency	13.6 kHz, adjustable	15 kHz, adjustable	18 kHz, adjustable
Audio Tone ID Levels	3	3	3
Target Depth Indicator	✔	✔	✔
Standard Searchcoil	8.5” x 11” DD PROformance™	8.5” x 11” DD PROformance™	5” x 8” DD PROformance™
Length (Adjustable)	43" to 56" (1.09m - 1.4m)	43" to 56" (1.09m - 1.4m)	43" to 56" (1.09m - 1.4m)
Power	4 AA (included)	4 AA (included)	4 AA (included)
Battery Condition Indicator	✔	✔	✔
Warranty	3 Years	3 Years	3 Years
Total Weight	3.03 lbs (1.4 kgs)	3.03 lbs (1.4 kgs)	2.8 lbs (1.27 kgs)
